The range
Three trailer models and a containerised range, all built on the same LFP platform, the same battery management system and the same Austin engineering.
Product lines
15 kWh in a compact steel enclosure. Small sites, vendors, cabins and home backup.

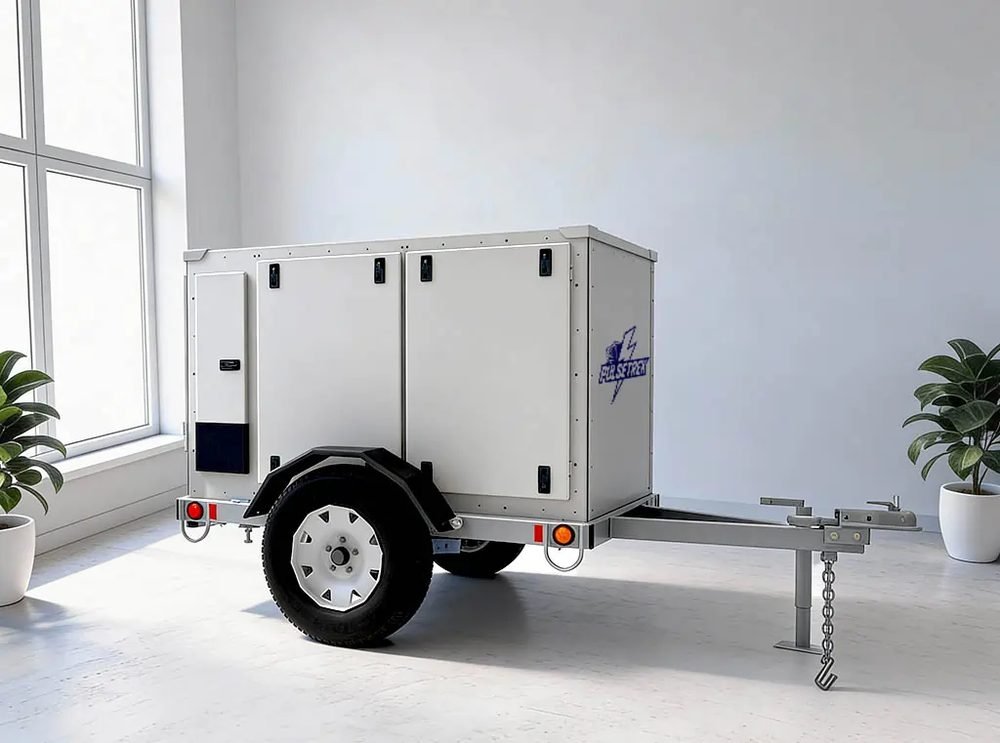

15 or 30 kWh on a 3,500 lbs GVWR trailer, in 120V/60Hz or 230V/50Hz.
3.3 to 8.3 MWh of liquid-cooled LFP storage in 20 ft and 40 ft containers.
8 kWh all-in-one battery backup for homes, villas and small businesses.
At a glance
The three trailer models side by side.
| Parameter | Base | Base+ | Performance |
|---|---|---|---|
| Total energy | 15 kWh | 30 kWh | 30 kWh |
| Capacity | 300 Ah | 600 Ah | 600 Ah |
| Nominal voltage | 51.2 V | 51.2 V | 51.2 V |
| Output voltage | 120 VAC @ 60 Hz | 120 VAC @ 60 Hz | 230 VAC @ 50 Hz |
| Continuous output (25°C) | 2,400 W | 2,400 W | 8,000 W |
| Continuous output (40°C) | 2,200 W | 2,200 W | 6,500 W |
| Peak power | 5,500 W | 5,500 W | 20,000 W |
| Max efficiency | 95% | 95% | 94–96% |
| Transfer switch | 50 A | 50 A | 100 A |
| Max AC input current | 50 A | 50 A | 2 × 100 A |
| Power outlets | 2× NEMA 5-15R, 15A, 125V | 2× NEMA 5-15R, 15A, 125V | 3× NEMA 5-20, 20A, 125V |
| Charging receptacle | NEMA 5-15, 15A, 125V | NEMA 5-15, 15A, 125V | NEMA 10-30, 30A, 240V |
| Generator receptacle | NEMA 5-30, 30A, 125V | NEMA 5-30, 30A, 125V | NEMA 10-30, 30A, 240V |
| EV charger included | — | Level 1, 15 ft | Level 2, 32 A, 25 ft |
| Zero load power | 11 W / 7 W / 2 W | 11 W / 7 W / 2 W | 60 W / 40 W / 15 W |
Choose by load
Light-to-medium loads: small crews, single-trade operations and supplemental backup power.
Twice the stored energy of the Base, plus a Level 1 EV charging outlet for light fleet duty.
Stage rigs, trailer compounds and international shoots. The only Made-in-USA trailer BESS with native 230V/50Hz output.
Utility support, data centres, large compounds and multi-stage events, up to 8.3 MWh.
| Chemistry | LFP (lithium iron phosphate) |
|---|---|
| Nominal voltage | 51.2V |
| Cycle life | 6,000+ |
| SOC cutoff | 20% |
| Enclosure | NEMA 3R powder-coated steel |
| Trailer GVWR | 3,500 lbs |
| Bed height | 18-20 in |
| Road clearance | 7-10 in |
| Operating range | -20°C to +50°C |
| Monitoring | Touchscreen HMI and remote monitoring |
| Options | Solar upgrade kit, stadium lighting kit, security camera kit |
Options
Recharge from the sun for open-ended off-grid runtime. See solar + battery storage.
Site and event lighting mounted to the trailer, powered from the same pack.
Monitored site security that runs off the battery, with no separate power drop.
Questions answered
Multiply your average load in kW by the hours you need to run. A site drawing an average 3 kW for 8 hours needs roughly 24 kWh of usable energy, so a 30 kWh trailer with a 20% state-of-charge cutoff is the right size. Send us your load list and we will size it.
kW is power — how much the system can deliver at any instant, which must exceed your largest simultaneous load. kWh is energy — how much it can deliver over time, which sets your runtime. A PulseTrek Performance delivers 8,000 W (8 kW) continuous from a 30 kWh pack.
Yes. The PulseTrek Performance model is factory-configured for 230V/50Hz output, making it compatible with Middle East, European, South Asian and African grid standards without modification. The Base and Base+ models output 120V/60Hz for US-standard applications.
Yes. The solar upgrade kit lets any PulseTrek trailer recharge from photovoltaic panels during the day, which extends runtime indefinitely on off-grid deployments where the daily load is within the array's output.
Get in touch
Tell us the site, the load and the runtime you need. Our Austin engineering team comes back with a configuration, a runtime estimate and a price.
