Tow it in, plug it in, walk away. Three trailer models on one LFP platform, from 15 kWh for small crews to 30 kWh at native 230V/50Hz.
Compare
| Base | Base+ | Performance | |
|---|---|---|---|
| Energy | 15 kWh | 30 kWh | 30 kWh |
| Continuous (25°C) | 2,400 W | 2,400 W | 8,000 W |
| Peak | 5,500 W | 5,500 W | 20,000 W |
| Output | 120V / 60Hz | 120V / 60Hz | 230V / 50Hz |
| Transfer switch | 50 A | 50 A | 100 A |
| EV charging | None | Level 1 | Level 2, 32 A |
| Details | Base | Base+ | Performance |
The platform

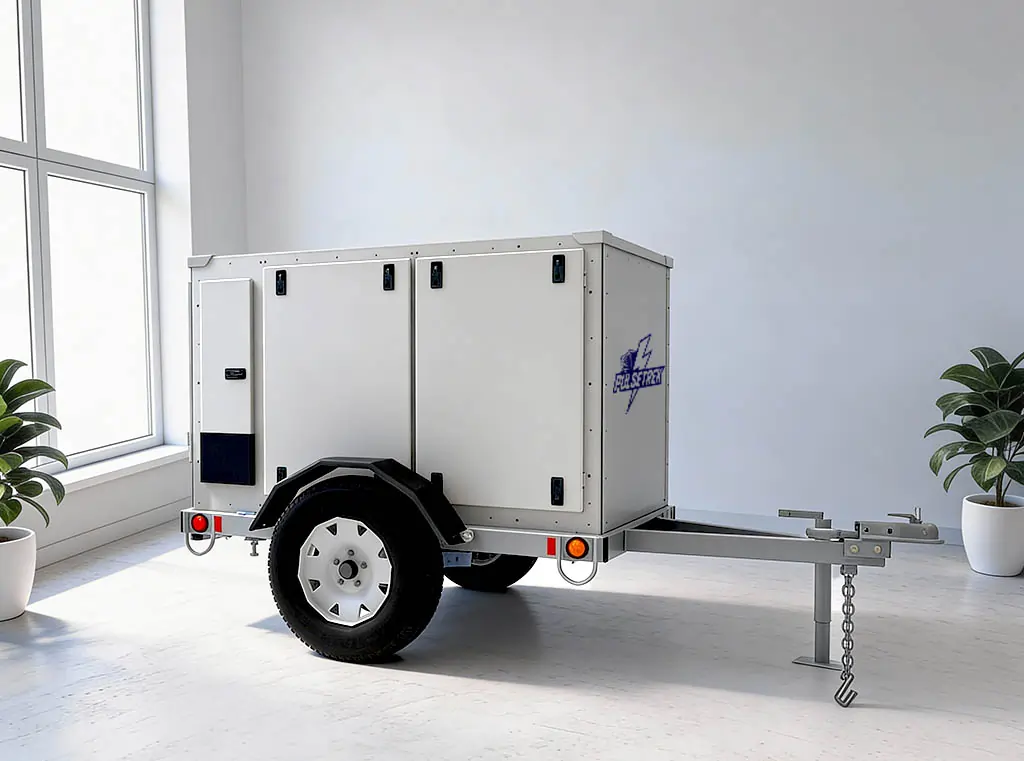

Every PulseTrek Trailer uses LFP cells rated for 6,000+ cycles, a 51.2V nominal pack, a touchscreen HMI with remote monitoring, a generator input for hybrid operation and a NEMA 3R powder-coated steel enclosure on a 3,500 lbs GVWR chassis that a standard pickup can tow.
The range targets the gap the big rental houses leave: their battery fleets focus on 200 kWh-plus units for cranes and large sites, while many jobs need 15 to 30 kWh that one person can deliver and connect.
| Chemistry | LFP (lithium iron phosphate) |
|---|---|
| Nominal voltage | 51.2V |
| Cycle life | 6,000+ |
| SOC cutoff | 20% |
| Enclosure | NEMA 3R powder-coated steel |
| Trailer GVWR | 3,500 lbs |
| Bed height | 18-20 in |
| Road clearance | 7-10 in |
| Operating range | -20°C to +50°C |
| Monitoring | Touchscreen HMI and remote monitoring |
| Options | Solar upgrade kit, stadium lighting kit, security camera kit |
Questions answered
The trailer is built on a 3,500 lbs GVWR chassis, within the towing capacity of most full-size pickups. Always check your vehicle and hitch ratings.
The Performance model is built for 230V/50Hz equipment and markets. Tell us your equipment voltage and we will confirm the right configuration.
From grid power, from a generator through the generator input, or from the solar upgrade kit. Many users recharge overnight and run on battery during the day.
Get in touch
Tell us the site, the load and the runtime you need. Our Austin engineering team comes back with a configuration, a runtime estimate and a price.
